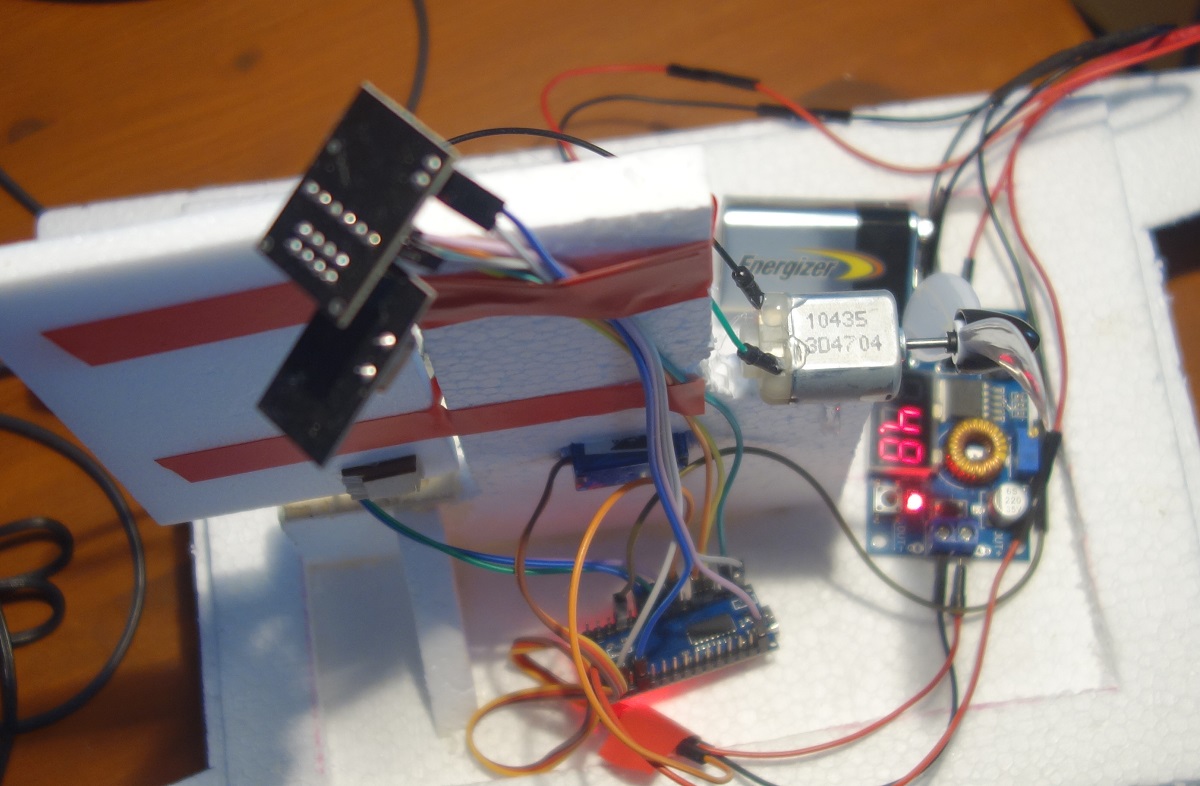

Remote Control Receiver

Like the transmitter, the receiver essentially consists of an arduino nano and a NRF24L01 WiFi module. Since the arduino can only handle a voltage of 5 v, but the battery supplies 9 v, the voltage between the battery and the arduino must be reduced from 9 v to 5 V. To do this, we use a LM2596S or any similar DC / DC converter.

Required parts:

1 x Arduino Nano
1 x NRF24 module
1 x 9V battery
1 x LM2596S or similar DC7DC converter

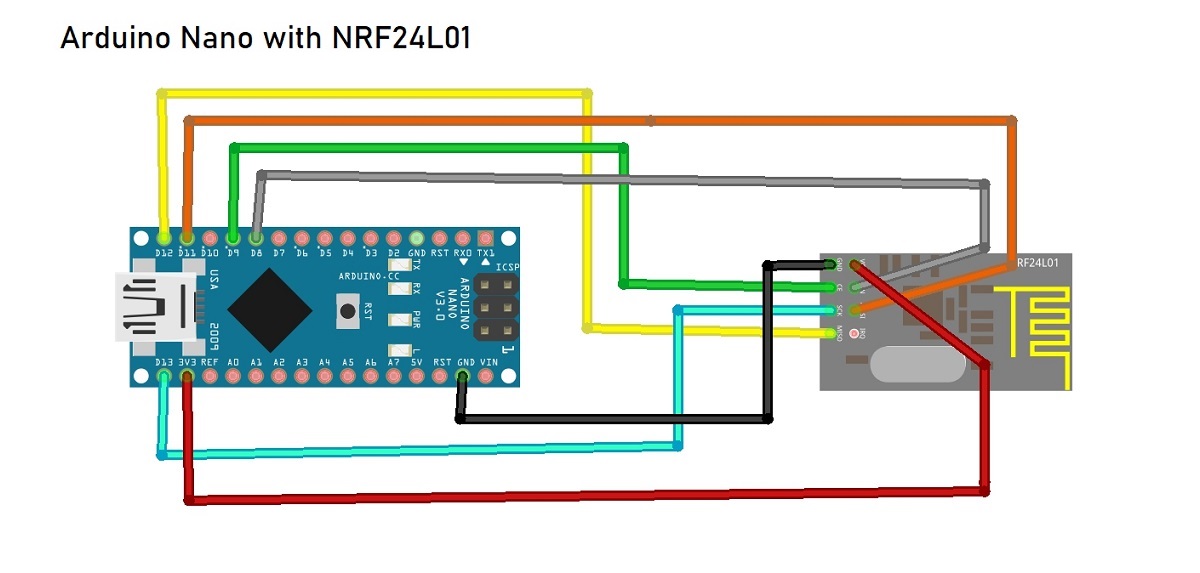

Wiring

NRF24L01      Arduino

MOSI          D11
MISO          D12
SCK           D13
CE            D9
CSN           D8
VCC           +3.3 V
GND           GND

Receiver Software

The software for the receiver allows the boat to move forward and backward and to move the rudder in two steps to the left and right. Driving backwards does not work properly, but theoretically it would be possible.


/*
* Airboat RC Controller
* Code for transmitter
* (c) Stefan Hager 2023
*/

#include <SPI.h>
#include <nRF24L01.h>
#include <RF24.h>
#include <Servo.h>

#define DEBUG 1

// CE is on pin 9
// CSN is on pin 8
RF24 receiver(9, 8);

// servo for airboat rudder
Servo rudder;


// pins for L298N (motor controller)
int PWM = 5;
int in1 = 4;
int in2 = 3;

const byte address[7] = "AIRBOAT";

// this data package is expected from  transmitter

struct Data_Struct
{
  int thrust = 0;
  int rudder = 90;
};

Data_Struct data;

void setup()
{
  Serial.begin(9600);
  Serial.println("Setup starts....");

  // initialize receiver
  receiver.begin();
  if(receiver.isChipConnected())
  {
    Serial.println("Start reading pipe...");
    receiver.openReadingPipe(0, address);
    receiver.setPALevel(0);
    receiver.setDataRate(RF24_250KBPS);
    receiver.setChannel(0x60);
    receiver.startListening();

  }
  else
  {
    Serial.println("Chip is not properly connected!");
    receiver.stopListening();
  }

  // Servo on pin D5
  rudder.attach(6);
  // move to middle position
  Serial.println("Positioning rudder servo to 90 degrees...");
  rudder.write(90);

  // initialize L298N pins
  pinMode(PWM, OUTPUT);
  pinMode(in1, OUTPUT);
  pinMode(in2, OUTPUT);
}

void loop()
{
  // any data...?
  if(receiver.available())
  {
    receiver.read(&data, sizeof(data));
  }

  // motor
  if(data.thrust > 60)
  {
      // forward
      digitalWrite(in1, HIGH);
      digitalWrite(in2, LOW);
      analogWrite(PWM, data.thrust);
      Serial.println("F: ");
      Serial.println(data.thrust);
  }
  else if(data.thrust < -60)
  {
      // reverse
      digitalWrite(in1, LOW);
      digitalWrite(in2, HIGH);
      analogWrite(PWM, data.thrust);
  }
  else
  {   // neutral - switch motor off
      analogWrite(PWM, 0);
  }

  // rudder
  if(data.rudder < 80 or data.rudder > 120)
  {
      // do only move, if you have a value that really differs from neutral (=90)
      rudder.write(data.rudder);
  }
  else
  {
     rudder.write(90);
  }

  #ifdef DEBUG
    Serial.print("T: ");
    Serial.print(data.thrust);
    Serial.print(" R:");
    Serial.println(data.rudder);
  #endif
  delay(20);

}
